Customized best aluminum nitride high thermal conductivity wear ring

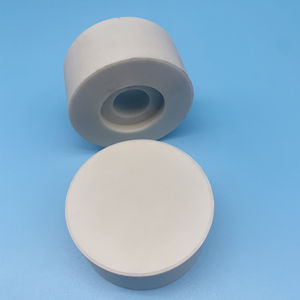

Overview of Aluminum Nitride High Thermal Conductivity Wear Ring

Aluminum nitride’s high thermal conductivity wear ring is a kind of high-performance ceramic product. It is made of aluminum nitride as the main raw material and has excellent thermal conductivity, which can conduct heat quickly and effectively reduce the operating temperature of the equipment. At the same time, the aluminum nitride high thermal conductivity wear ring has excellent wear resistance and can withstand high-speed friction and wear to extend the service life of the equipment. In addition, Aluminum Nitride’s high thermal conductivity wear ring has good chemical stability and insulation and has a wide range of applications in electronics, machinery and many other fields, improving the performance and reliability of the key components of the equipment.

Features of Aluminum Nitride High Thermal Conductivity Wear Ring

Aluminum Nitride High Thermal Conductivity Wear Ring occupies an important position in the material field with its unique performance. In terms of thermal conductivity, the thermal conductivity of aluminum nitride high thermal conductivity wear ring is much higher than that of ordinary materials, up to 170 – 230W/(m・K), which is able to quickly transfer heat out, greatly enhancing the efficiency of heat dissipation of the equipment, effectively avoiding the performance degradation and failure due to the accumulation of heat, and providing a stable operating environment for the electronic chip and other high-heat-generating components.

In terms of wear-resistant performance, through a special process, the surface hardness of aluminum nitride high thermal conductivity wear ring can reach HV1200 – 1500, which can withstand high-speed, high-frequency friction and significantly reduce the degree of abrasion and prolong the overall life of the equipment in scenarios such as mechanical transmission.

High strength and high hardness are other major advantages of aluminum nitride high thermal conductivity wear rings, compressive strength of 350 – 400MPa, can withstand greater pressure and impact, and still maintain structural integrity under harsh working conditions.

In terms of chemical stability, aluminum nitride’s high thermal conductivity wear ring has strong resistance to acid, alkali and other chemical substances; in the chemical industry, metallurgy and other corrosive environments, it is not easy to chemical reaction and material deterioration.

At the same time, aluminum nitride high thermal conductivity wear rings have excellent insulating properties, with dielectric constant as low as 8 – 9, in the electrical equipment can not only efficiently dissipate heat but also play good insulation isolation to ensure safe and stable operation of the equipment.

Specifications table of Aluminum Nitride High Thermal Conductivity Wear Ring

Property	Value
Thermal Conductivity (W/(m·K))	170 – 230
Hardness (HV)	1200 – 1500
Compressive Strength (MPa)	350 – 400
Dielectric Constant	8 – 9
Density (g/cm³)	Around 3.26
Thermal Expansion Coefficient (10⁻⁶/K)	4.5 – 5.5
Chemical Stability	Excellent resistance to acids, alkalis and other chemicals

Play

Applications of Aluminum Nitride High Thermal Conductivity Wear Ring

Aluminum nitride’s high thermal conductivity wear ring has become a key material in many cutting-edge fields due to its excellent performance.

In the field of electronics and information, with the rapid development of 5G communication and artificial intelligence technology, the integration degree and operation speed of chips are increasing, and the problem of heat generation is becoming more and more serious. Aluminum nitride high thermal conductivity wear ring can quickly export the heat generated by the chip, and its excellent thermal conductivity can reduce the chip junction temperature by 15-20 ℃, effectively avoiding performance degradation and life-shortening due to overheating and building a solid foundation for the stable operation of servers, data centers and other large-scale electronic equipment.

In high-power semiconductor devices, such as IGBT modules, aluminum nitride high thermal conductivity wear rings not only undertake the important task of heat dissipation but also, by virtue of good insulation, ensure the safe operation of the device in the high-voltage, high-current environment.

The new energy automobile industry has very high requirements for heat dissipation and reliability, and aluminum nitride high thermal conductivity wear rings play an important role in vehicle inverters. The inverter generates a lot of heat in the process of power conversion, and the use of this wear-resistant ring can quickly dissipate the heat and increase the efficiency of the inverter by 3%-5%. At the same time, its wear-resistant characteristics can adapt to the vibration and impact of the vehicle environment and ensure the long-term stable operation of the equipment.

The battery management system can accurately control the temperature of the battery pack, avoiding the safety hazards caused by local overheating, improving the battery range and service life, and providing technical support for the popularization and development of new energy vehicles.

 In the field of machining, the high-speed operation of machine tools, automated production lines and other equipment puts forward stringent requirements on the wear resistance of components. Aluminum nitride high thermal conductivity wear ring, as the key moving parts of the protective ring, can withstand up to 10m / s more than the linear speed of friction; its wear resistance can make the parts of the abrasion amount by more than 60%, significantly reducing the frequency and cost of equipment maintenance. Precision machining equipment can also quickly conduct the heat generated by the cutting process, prevent the tool from overheating and wearing, and improve machining accuracy and surface quality.

In the aerospace field, aluminum nitride’s high thermal conductivity wear ring with excellent high-temperature resistance and radiation resistance performance is used in aviation engines, satellite electronic equipment and other key parts. In extreme high-altitude environments, it can not only efficiently dissipate heat to ensure the normal operation of the equipment but also resist high-speed airflow wash and space particle radiation to enhance the reliability and safety of the aircraft.

In the field of medical devices, especially CT, MRI, and other large-scale medical equipment, aluminum nitride high thermal conductivity wear ring can help equipment rapid heat dissipation to ensure the stability and accuracy of the imaging system; at the same time, it good biocompatibility and chemical stability, to avoid adverse effects on the human body, to provide reliable protection for medical diagnosis and treatment.

Company Profile

RBOSCHCO is a trusted global chemical material supplier & manufacturer with over 12 years of experience in providing super high-quality chemicals and Nanomaterials. The company exports to many countries, such as the USA, Canada, Europe, UAE, South Africa, Tanzania, Kenya, Egypt, Nigeria, Cameroon, Uganda, Turkey, Mexico, Azerbaijan, Belgium, Cyprus, Czech Republic, Brazil, Chile, Argentina, Dubai, Japan, Korea, Vietnam, Thailand, Malaysia, Indonesia, Australia, Germany, France, Italy, Portugal etc. As a leading nanotechnology development manufacturer, RBOSCHCO dominates the market. Our professional work team provides perfect solutions to help improve the efficiency of various industries, create value, and easily cope with various challenges. If you are interested, please send an email to sales1@rboschco.com

Payment Term

T/T, Western Union, Paypal, Credit Card etc.

Shipment Term

By air, by sea, by express, as customers request.

5 FAQs of Aluminum Nitride High Thermal Conductivity Wear Ring

Q1: Will the performance of Aluminum Nitride High Thermal Conductivity Wear Rings degrade after long-term use?

Under normal working conditions, aluminum nitride wear rings can last for several years. However, high temperature, high humidity or high stress environments may accelerate wear or hydrolysis. It is recommended to check the surface wear regularly (if grooves are present, they need to be replaced promptly).

Q2: Do Aluminum Nitride products meet environmental standards?

Most Aluminum Nitride ceramics comply with the ROHS directive and are free of lead, mercury and other hazardous substances, and are suitable for use in electronic and electrical equipment. Some manufacturers also provide FDA-certified products to meet the needs of the medical field.

Q3: Do you support customization of Aluminum Nitride high thermal conductivity wear rings?

Aluminum nitride rings can be customized according to size (e.g., inner diameter 6-410mm, thickness 2-20mm), shape (toroidal, shaped), and performance requirements (e.g., higher thermal conductivity or hardness), depending on the drawings or parameter requirements.

Q4: What is the price of an Aluminum Nitride High Thermal Conductivity Wear Ring?

Prices vary depending on specifications, process and batch size. The unit price for small-size samples is about $10-100, while large-size or high-precision products can be up to thousands of dollars. It is recommended to contact the supplier for a customized quote.

Q5: Is aluminum nitride fragile?

Although Aluminum Nitride ceramics have high hardness, they are brittle and need to avoid impacts or collisions with sharp objects. Impact resistance can be improved by optimizing the structural design (e.g., adding chamfers) or using composite processes (e.g., embedding with metal).
