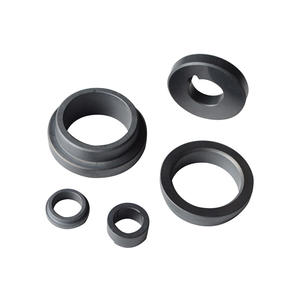

General Introduction to Zirconia and Silicon Nitride Ceramic Rings
The difference between zirconia and silicon nitride ceramic rings essentially stems from the material bonding method and structural properties: the former achieves “stiffness and flexibility” through phase change toughening and is suitable for medium-temperature, alternating load scenarios; the latter relies on the strength of covalent bonding and a columnar crystalline structure and excels in high-temperature, high-load, and strongly corrosive environments.
With the development of nanocomposite technology and additive manufacturing process, the two performance boundaries are gradually expanding – zirconia through the nanoparticle dispersion reinforcement to enhance the hardness and silicon nitride through the fiber toughening to improve the toughness; the future is expected to achieve a wider range of high-end equipment in the field of alternative and complementary.

Differences in material composition and structural properties
Zirconia ceramic ring with zirconium dioxide (ZrO₂) as the main component, its crystal structure with the temperature showing monoclinic phase, tetragonal phase, cubic phase transformation. The monoclinic phase, which is stable at room temperature, can form a tetragonal solid solution through the introduction of stabilizers such as yttrium oxide (Y₂O₃), which enhances the toughness by using the “phase change toughening” mechanism. In its microstructure, the stabilizers are uniformly distributed at grain boundaries, inhibiting the volume expansion cracking of the tetragonal phase → monoclinic phase during the cooling process, making the material both strong and impact resistant.
Silicon nitride ceramic rings are composed of silicon nitride (Si₃N₄), which is a covalently bonded compound with an α-phase (low-temperature acicular crystals) and a β-phase (high-temperature short columnar crystals). The α-phase is gradually transformed into the β-phase during high-temperature sintering, and the content of the β-phase directly determines the strength of the material. Due to the strong covalent bonding, it is necessary to add sintering additives such as MgO and Al₂O₃ to reduce the sintering activation energy and promote densification. The microstructure is dominated by the interlaced arrangement of β-phase columnar crystals, forming the “whisker enhancement” effect, which gives the material high hardness and wear resistance.

Comparison of physicochemical properties
Mechanical properties
Zirconia: excellent fracture toughness (5~15 MPa・m¹/²), bending strength 800~1200 MPa, suitable for impact loads, but lower hardness (Vickers hardness 1200~1500 HV), wear resistance is slightly inferior to silicon nitride.
Silicon nitride: bending strength as high as 1000~1500 MPa, Vickers hardness 1800~2200 HV, wear resistance is 1/5~1/3 of alumina ceramics, but fracture toughness is only 3~6 MPa・m¹/², impact resistance is weak, belongs to the typical brittle materials.
Thermal properties
Zirconia: low thermal conductivity (2~3 W/(m・K)), good thermal insulation, coefficient of thermal expansion (9~10×10-⁶/°C) is close to the metal, suitable for matching with metal parts; however, the thermal stability at high temperatures is poor, the long-term use of the temperature of about 1100 ℃.
Silicon nitride: thermal conductivity as high as 20~30 W/(m・K), outstanding heat dissipation ability, low coefficient of thermal expansion (2.5~3.2×10-⁶/°C), excellent dimensional stability, can be used for long-term work in high-temperature environments of more than 1300°C, and resistance to thermal shock (△T=800°C without rupture) is significantly better than zirconia.
Chemical properties
Zirconia: good acid and alkali resistance, can resist most inorganic acids (except hydrofluoric acid) and strong alkali corrosion, high temperature on aluminum, copper and other molten metal erosion resistance, widely used in metallurgical crucibles.
Silicon nitride: more chemically inert, in addition to hydrofluoric acid and hot strong alkali, almost no reaction with any chemical medium, especially resistant to iron, steel, zinc and other molten metal erosion, is the first choice for high-temperature corrosion-resistant parts in the aerospace field.

Differences in the preparation process
Zirconia ceramic rings are made by powder metallurgy process: high purity ZrO₂ powder (particle size < 1 μm) is dry pressed / isostatic pressed and molded, then sintered at 1500~1700℃ in an air atmosphere, and toughened by a tetragonal phase → monoclinic phase transition induced by controlling the cooling rate. The key to the process lies in the uniform dispersion of stabilizers and the control of phase transition, and the post-treatment often adopts grinding and polishing to improve the surface accuracy.
Silicon nitride ceramic rings require special sintering technology: Reaction sintering: Silicon powder reacts directly with nitrogen to produce Si₃N₄, which is low-cost but lacks density (<90%) and has limited performance;
Hot press sintering: under 1600~1800℃, 20~30 MPa nitrogen pressure, with the help of sintering additives to promote densification, densification >95%, but the production efficiency is low;
Pneumatic sintering method: sintered in 1~2 MPa nitrogen at high pressure, can obtain products close to the theoretical density, both high performance and large-scale production capacity. The molding process mostly adopts injection molding or gel injection molding to realize the preparation of complex structures.
Differences in application scenarios
Typical applications of zirconia ceramic rings
Mechanical seals and bearings: utilizing the advantage of high toughness, used as sealing rings for water pumps and compressors to resist fluid shock and vibration;
Electronic packaging: coefficient of thermal expansion matched with silicon chips, used as integrated circuit substrates or ceramic packaging shells;
Medical implants: excellent biocompatibility, used in artificial hip joints and dental prostheses, not easy to fracture when subjected to alternating loads.
Core scenarios for silicon nitride ceramic rings
Aerospace engine: turbine blades, bearings and other high-temperature components, resistant to gas corrosion and high-speed airflow washout above 1300℃;
Semiconductor manufacturing: etching machine cavities, gas transportation pipelines, resistance to strong corrosive plasma erosion;
Precision machining tools: high-speed cutting tools (such as milling cutters and drills), the use of high hardness to achieve efficient machining of cemented carbide;
New energy field: fuel cell stack support ring, both thermal conductivity and chemical stability, to ensure long-term reliable operation of the battery.
