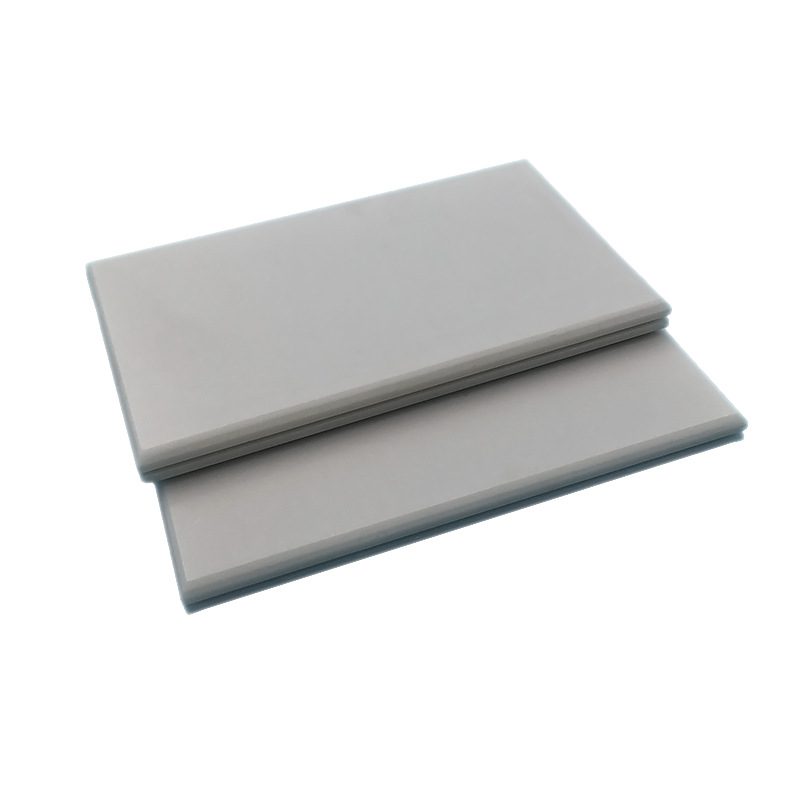

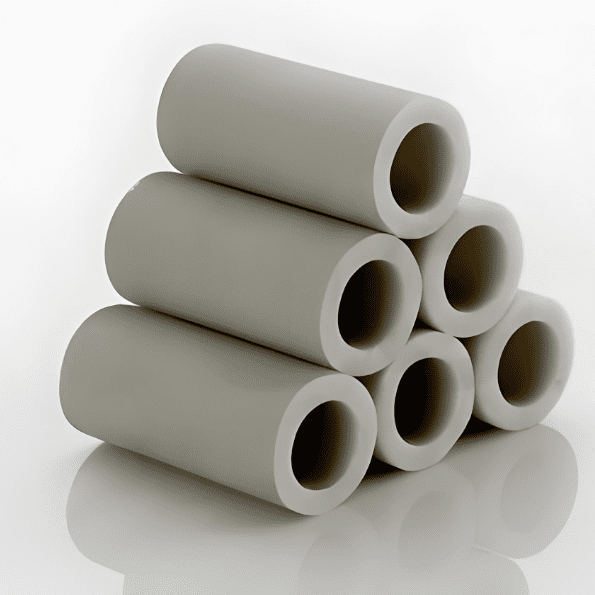

Production Process and Comparison of the Advantages and Disadvantages of Aluminum Nitride Ceramic Products

Abstract: Aluminum nitride (AlN) ceramics, as an emerging advanced ceramic material, have shown great potential in applications such as electronics, power, aerospace, etc., due to their excellent thermal conductivity, electrical insulation, and thermal expansion coefficient matched with silicon. This article systematically elaborates on the main production process of aluminum nitride ceramic products from powder preparation to final processing, and deeply compares its significant advantages and current limitations compared to other commonly used ceramic materials (such as alumina, silicon nitride, beryllium oxide), aiming to provide a reference for material selection and process optimization.

1. The main production process of aluminum nitride ceramics

The production of aluminum nitride ceramic products is a technology-intensive, precision process, mainly including powder preparation, forming, sintering, and post-processing, each of which directly affects the performance of the final product.

1. Powder preparation: the cornerstone of quality

High-quality aluminum nitride powder is a prerequisite for preparing high-performance ceramics. The current mainstream methods include:

Direct nitriding method: Aluminum powder reacts directly in high-temperature nitrogen or ammonia gas to generate AlN. This method has a relatively simple process and low cost, but the resulting powder has coarse particle size and high oxygen content, usually requiring subsequent processing.

Carbon thermal reduction method: Mix alumina with carbon powder and reduce nitridation at high temperature in a nitrogen atmosphere. This method can obtain powders with fine particle size, high purity, and good sintering activity, and is the main method for industrial production of high-performance AlN powders.

Chemical Vapor Deposition (CVD): Synthesize ultrafine and high-purity AlN powder through chemical reaction between gaseous aluminum source and nitrogen-containing gas. The powder quality is excellent, but the cost is high, and it is often used for special needs.

The prepared AlN powder is highly susceptible to hydrolysis and requires surface passivation treatment (such as controlling oxidation to form a thin layer of aluminum oxide), and is strictly stored and transported in a dry environment.

2. Forming process: give preliminary shape

Select appropriate forming technology based on the shape and performance requirements of the product:

Dry pressing forming: Fill the powder into the steel mold and apply unidirectional or bidirectional pressure. High efficiency, suitable for substrates, pads, etc., with simple shapes, but poor density uniformity.

Isostatic pressure forming: The powder is loaded into a flexible mold, and isotropic pressure is transmitted through liquid or gas. Capable of manufacturing green bodies with complex shapes and uniform densities, suitable for high-performance products.

Casting forming: Mix AlN powder with binders, plasticizers, etc., to form a slurry, and use a scraper to make a thin film. This is the key technology for producing multi-layer circuit substrates and thin ceramic sheets.

Injection molding: Mix AlN powder with a large amount of organic binder, heat and inject into the mold. Suitable for mass production of small, complex three-dimensional precision parts, but the degreasing process is long and prone to defects.

3. Sintering densification: the determining step of key performance

Sintering is the core process of densifying porous billets to obtain the desired microstructure and properties. Due to AlN being a strong covalent compound with a low self-diffusion coefficient, it is difficult to achieve pure sintering density and requires the addition of sintering aids (most commonly rare earth or alkaline earth metal oxides such as Y2O3 and CaO).

Mechanism of sintering additives: The additives react with Al2O3 on the surface of AlN particles to form a low-melting-point liquid phase (such as aluminate), which promotes material migration and particle rearrangement through a liquid-phase sintering mechanism, achieving densification. At the same time, additives can “capture” oxygen impurities, purify the AlN lattice, and significantly improve thermal conductivity.

Main sintering methods:

Atmospheric sintering: carried out in ordinary atmosphere or nitrogen atmosphere, with low cost, is the mainstream method for producing most commercial AlN products.

Hot pressing sintering/hot isostatic pressing sintering: applying uniaxial or isotropic pressure while heating. It can significantly reduce the sintering temperature and obtain products with near theoretical density and excellent mechanical properties, but the equipment is complex, the cost is high, and it is suitable for high-end applications.

4. Post-processing and metallization: meeting application requirements

After sintering, AlN ceramics usually require precision machining to achieve dimensional and surface accuracy requirements. Due to their high hardness, diamond grinding wheels, laser cutting, ultrasonic machining, and other methods are often used. For electronic packaging applications, surface metallization (such as thick film printing, thin film deposition, brazing, or active metallization) is also required to form conductive lines or achieve reliable sealing with metal components.

2. Comparison of the advantages and disadvantages of aluminum nitride ceramics

Comparing aluminum nitride ceramics with commonly used aluminum oxide (Al2O3), silicon nitride (Si3N4), and high thermal conductivity beryllium oxide (BeO) in electronic packaging and structural ceramics, its characteristics are clearer.

1. Core advantages

Excellent thermal conductivity: This is the most prominent advantage of AlN. Its theoretical thermal conductivity is as high as 320 W/(m · K), and commercial products can generally reach 170-230 W/(m · K), far higher than Al2O3 (about 20-30 W/(m · K)), comparable to or even better than the highly toxic BeO (about 250 W/(m · K)), and non-toxic and environmentally friendly. AlN is an irreplaceable substrate or packaging material for high-power LEDs, lasers, IGBT modules, and other fields that require strict heat dissipation.

Excellent thermal compatibility: The thermal expansion coefficient of AlN (4.5 × 10 ⁻⁶/K) is very close to that of silicon chips (3.5 × 10 ⁻⁶/K). This matching can significantly reduce the thermal stress during device operation, improve reliability and service life, and is superior to Al2O3 and BeO.

Good electrical insulation performance: high body resistivity, low dielectric constant (about 8-9), low dielectric loss, suitable for high-frequency and high-speed circuit applications.

Higher mechanical strength and hardness: Its strength and hardness are superior to BeO and ordinary Al2O3, although slightly lower than Si3N4; it can already meet the mechanical support and protection requirements of most electronic components.

Non-toxic and environmentally friendly: Compared to the highly toxic BeO powder, AlN is safer in production and use, which is one of the key factors for its replacement of BeO.

2. Main disadvantages and challenges

High cost: The preparation process of raw material powder is complex, requiring high-purity nitrogen gas and expensive sintering aids, resulting in the cost of AlN ceramics being much higher than that of Al2O3, about several to ten times higher than the latter, which limits its application in cost-sensitive fields.

High process difficulty: extremely sensitive to raw material purity, particle size distribution, sintering aid formula, and sintering process (atmosphere, temperature curve). Improper process control can easily lead to substandard thermal conductivity, cracking, or deformation of products, posing significant challenges to yield management.

Mechanical properties and reliability limitations: Although the strength is still acceptable, its fracture toughness is generally lower than that of Si3N4 and partially toughened alumina, and its resistance to mechanical impact and thermal shock (although better than BeO) is also inferior to Si3N4. Its applicability needs to be carefully evaluated under extreme mechanical loads or severe thermal cycling environments.

The metalization process is complex: AlN surface is not easy to form a strong bond with common metals, usually requiring complex surface pretreatment or the use of active brazing materials, which increases the process steps and costs.

There is a potential risk of hydrolysis: in high-temperature and high-humidity environments, residual sintering aids or defects may cause slow hydrolysis reactions, affecting long-term reliability, which needs to be addressed through formula optimization and coating protection.

3. Conclusion and Prospect

Aluminum nitride ceramics, with their unparalleled high thermal conductivity, insulation, and thermal expansion properties that match silicon, have become the preferred material for modern high-end electronic and power device heat dissipation management, playing a crucial role in cutting-edge fields such as 5G communication, new energy vehicles, and aerospace.

However, its high production costs and strict process requirements constitute the main obstacles to further market expansion. Future development will focus on reducing raw material costs by improving powder synthesis processes (such as self-propagating synthesis) and scaling up production; developing more effective low-temperature sintering additive systems to reduce energy consumption and refine grain size; researching new pressureless sintering techniques (such as discharge plasma sintering) to achieve higher performance; Optimize metallization technology and packaging reliability.

In summary, aluminum nitride ceramics are an advanced functional material with outstanding performance but a high preparation threshold. In practical applications, a comprehensive balance needs to be made between performance, reliability, and cost. With the advancement of technology and industrial upgrading, the production process of aluminum nitride ceramics will continue to be optimized, and the cost is expected to gradually decrease. Its application scope will expand from the current high-end field to a broader civilian market, providing a solid material foundation for the progress of electronic technology.
