Sodium-Ion Battery Layered Oxide Cathode – Ni-Fe-Mn Ternary High-Energy Material

Overview of NCM-Na-001 Layered Oxide Cathode

The NCM-Na-001 is a high-performance O3-type layered oxide cathode material designed specifically for sodium-ion batteries, featuring a classic Ni-Fe-Mn ternary system with the chemical composition NaNi₁/₃Fe₁/₃Mn₁/₃O₂. This material represents the industry benchmark for balanced electrochemical performance and production readiness.

Our sodium-ion layered oxide cathode portfolio encompasses a comprehensive range of crystal structures, including O3-type, P2-type, P2/O3 biphasic, single-crystal, and high-entropy configurations, complemented by diversified low-cost and high-performance modification systems based on Cu, Cr, Ti, and pure Mn chemistries. These materials are engineered to deliver high energy density, extended cycle life, and superior safety and stability, addressing the full spectrum of sodium-ion battery applications—from grid-scale energy storage and low-speed electric vehicles to two-wheelers and portable electronic devices.

Features of NCM-Na-001 O3-Type Layered Oxide Cathode

• Balanced & Reliable Performance
  The classic equimolar Ni-Fe-Mn ternary composition delivers a well-balanced combination of specific capacity, cycling stability, and rate capability, making it the industry reference for sodium-ion cathode materials.
• O3-Type Crystal Structure
  The O3 stacking configuration provides a high sodium content and stable structural framework, enabling high initial capacity and excellent compatibility with conventional battery assembly processes.
• High Specific Capacity
  Delivers an initial specific capacity of 160 mAh/g (2.0–4.2 V), providing substantial energy density for a wide range of sodium-ion battery applications.
• Good Cycling Stability
  Maintains 80% capacity retention after 100 cycles, ensuring reliable long-term performance in real-world applications.
• Rate Capability
  Achieves 80% capacity retention at 1C, supporting moderate high-rate discharge requirements for diverse use cases.
• Scalable & Industrially Proven
  Manufactured via mature high-temperature solid-state synthesis, enabling ton-scale production with excellent batch-to-batch consistency and cost control.

Technical Parameters of NCM-Na-001 O3-Type Layered Oxide Cathode

Material Specifications

Parameter	Specification
Product Code	NCM-Na-001
Material System	Classic Ternary Equimolar System
Chemical Composition	NaNi₁/₃Fe₁/₃Mn₁/₃O₂
Crystal Structure	O3-Type
Operating Voltage Range	2.0 – 4.2 V
Initial Specific Capacity	160 mAh/g
Cycling Stability	80% retention after 100 cycles
Rate Capability	80% retention at 1C
Technical Highlights	Balanced performance; industry production benchmark

Physical Properties & General Specifications

Parameter	Specification
Appearance	Black powder
Particle Size D50	5 – 20 μm (customizable)
Specific Surface Area (BET)	1 – 5 m²/g (customizable)
Tap Density	1.8 – 2.8 g/cm³ (customizable)
Moisture Content	≤ 500 ppm
Magnetic Impurities	≤ 100 ppb

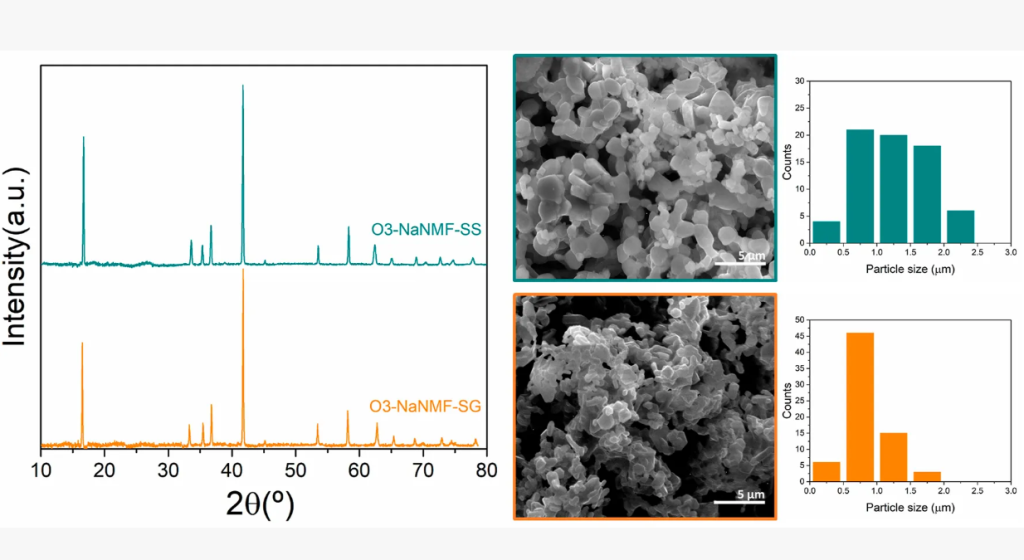

O3-NaNi1/3Fe1/3Mn1/3O2 is characterized:

Applications of NCM-Na-001 O3-Type Layered Oxide Cathode

• Grid-Scale Energy Storage Systems
  Ideal for large-scale photovoltaic/wind power integrated storage, grid peak shaving, and frequency regulation applications, leveraging long cycle life, high safety, and cost-effectiveness.
• Low-Speed Electric Vehicles
  Suitable for electric two-wheelers, three-wheelers, and low-speed four-wheelers, delivering high energy density, fast-charging capability, and excellent low-temperature adaptability.
• Portable Electronic Devices
  Designed for power banks, outdoor power supplies, and portable medical devices, offering high voltage platform, high specific capacity, and extended cycle life.
• Specialty Applications
  Customizable formulations available for low-temperature, high-temperature, high-safety, and other specialized requirements, including defense, aerospace, and deep-sea applications.

Company Profile

Luoyang Tongrun Nano Technology Co., Ltd. (TRUNNANO) is a global supplier and manufacturer of high-performance battery materials. We specialize in lithium-ion, sodium-ion, and other advanced battery materials, serving 3C electronics, power batteries, and energy storage systems.

Our products include nano cobalt oxide, nano manganese oxide, silicon-carbon anode materials, hard carbon, NFPP, alumina, boron nitride, and more. All are produced under strict quality control, supported by our in-house lab and professional technical team.

If you are looking for reliable battery materials, feel free to contact us or send an inquiry.

Payment Methods

L/C, T/T, Western Union, Paypal, Credit Card, etc.

Shipment

By sea, by air, or by express upon payment receipt.

Package of NCM-Na-001 O3-Type Layered Oxide Cathode

Standard Packaging

• Vacuum-sealed aluminum-laminated film bags or PE bags, placed inside sturdy cartons or drums to ensure moisture protection and contamination prevention.

Packaging Dimensions & Weight

• Net weight per carton: 20 kg (4 × 5 kg inner bags)
• Inner bag: 5 kg/bag in aluminum-laminated film or PE bag
• Carton dimensions: 600 × 500 × 400 mm

Storage & Handling Requirements

• Store in a dry, cool, well-ventilated environment, protected from moisture and direct sunlight.
• Palletized storage recommended; maximum stack height: 3 layers.
• Handle with care during transport; avoid impacts, compression, and exposure to corrosive substances.
• Shelf life: 12 months from date of manufacture under sealed, recommended storage conditions.
• Once opened, unused material should be immediately resealed and stored under dry conditions.

Customization Services

In addition to the standard NCM-Na-001 product, we offer comprehensive customization services to meet specific application requirements:

• Material System Customization
  Develop proprietary elemental ratios, crystal structures, and modification strategies tailored to your battery performance targets.
• Performance Indicator Customization
  Optimize specific capacity, cycle life, rate capability, voltage platform, low-temperature performance, and other key metrics through targeted engineering.
• Process Compatibility Customization
  Adjust particle size, specific surface area, tap density, and other physical properties to match your coating, calendering, and other production processes.
• Technical Support Services
  Provide full-process technical assistance including material application guidance, battery matching tests, and process optimization to accelerate your industrialization timeline.

5 FAQs of NCM-Na-001 O3-Type Layered Oxide Cathode

Q1: What is the O3-type crystal structure and why is it important?
O3-type refers to the stacking sequence of oxygen layers with sodium ions occupying octahedral sites. This structure provides high sodium content and stable electrochemical performance, making it ideal for high-capacity sodium-ion cathode applications.

Q2: How does NCM-Na-001 compare to other cathode materials in your portfolio?
NCM-Na-001 is our classic balanced-performance product. While other materials may offer higher rate capability (P2-type) or enhanced cycling stability (single-crystal variants), NCM-Na-001 delivers the most balanced combination of capacity, cycle life, and cost for general-purpose applications.

Q3: What is the recommended operating voltage range?
The recommended operating voltage range is 2.0–4.2 V. Within this window, the material delivers optimal capacity, cycling stability, and structural reversibility.

Q4: Can this material be customized for specific applications?
Yes, we offer extensive customization services including composition adjustment, particle size optimization, and surface modification to tailor performance for your specific application needs.

Q5: What is the shelf life and storage recommendation?
The shelf life is 12 months under sealed, recommended storage conditions. The material should be stored in a dry, cool environment away from moisture and contaminants. Once opened, unused material must be immediately resealed to prevent moisture absorption.
